Water Tank Monitoring

Know what’s happening inside your tanks.

Build a tank-monitoring configuration around water quality, stored-water level and the needs of your building’s supply system.

Discuss this solution Device configuration

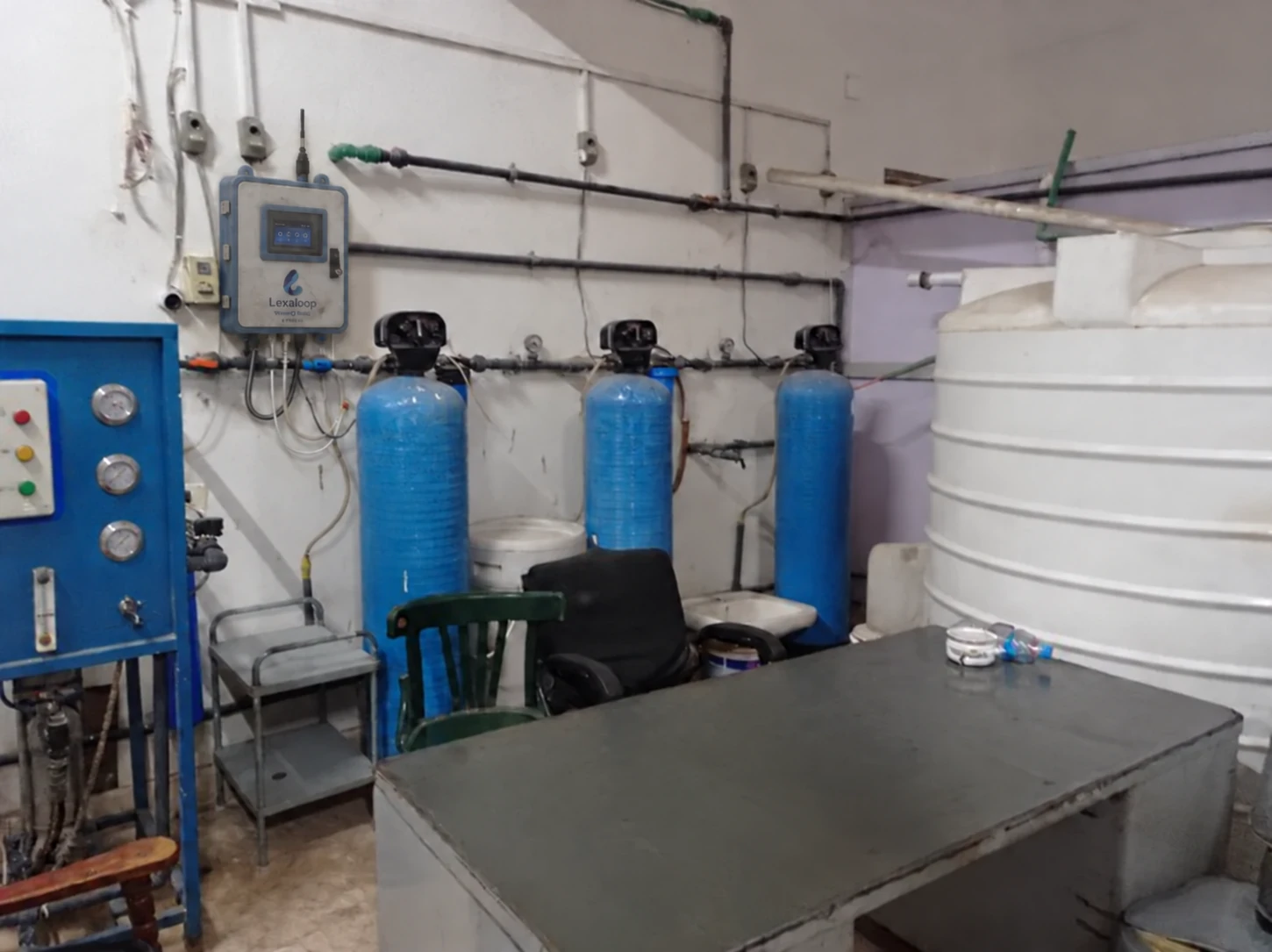

Treated-water and storage room with a Lexaloop WaterQ Basic analyzer digitally added to the wall beside the filters — WaterQ Basic LL-WQX-100

Monitoring scope

Water quality
Tank level¹
Low / high level¹

¹ Level measurement and high/low indications require an external level sensor and the agreed controller configuration.

Understand stored-water quality

Position the quality sampling point to represent the tank or supply line being monitored.

Add a view of available water

Specify level sensing to suit the tank depth, roof access and internal obstructions.

Design for each tank

Document each vessel, its measurement points and the actions operators need to take.

Quality and level sensor options

WaterQ analyzers + LexaLoop Level

Choose WaterQ Basic or Pro for water quality, and LexaLoop Level for non-contact tank-level measurement. Select the sensor range and mounting around the tank; confirm signal compatibility before combining readings in the monitoring controller.

Lexaloop product visualization

Seven-parameter water-quality analyzer

Lexaloop WaterQ Basic

LL-WQX-100

A wall-mounted analyzer for pH, ORP, residual chlorine, conductivity, TDS, salinity and temperature.

Display: 7-inch color touchscreen
Connectivity: 4G; RS485 / Modbus
Dimensions: 470 × 580 × 185 mm
Power: 100–240 V AC, 50/60 Hz
Sample flow: 500–1000 mL/min; 700 suggested
Device operating temperature: −5 to 45 °C

This is the branded Basic monitoring configuration. Turbidity and dissolved oxygen are not included in its supplied seven-parameter datasheet.

Download LL-WQX-100 datasheet

Lexaloop product visualization

Expandable water-quality monitoring

Lexaloop WaterQ Pro

LL-WQX-200

An expandable analyzer for water quality, with support for external flow, level and pressure inputs.

Display: 10-inch color touchscreen
Connectivity: 4G; RS485 / Modbus
External sensor inputs: Flow, level and pressure
Dimensions: 500 × 800 × 205 mm
Housing: 304 stainless steel
Power: 100–240 V AC, 50/60 Hz

Pressure and level require separate compatible sensors. Optional measurement channels, interface compatibility and accessories must be specified for the project.

Download LL-WQX-200 specifications

Non-contact level sensing

LexaLoop Level

Ultrasonic level sensor

Measure the liquid surface from above the tank, with a local LCD and an analog output for the monitoring controller.

Measurement: Non-contact ultrasonic
Range options: 0–10 m or 0–20 m
Blind zone: 0.5 m
Output: 4–20 mA and two relays
Display: Built-in LCD for level or distance
Operating temperature: −20 to 60 °C

Allow for the 0.5 m blind zone and check foam, condensation, obstructions and mounting. Controller compatibility and relay functions are confirmed for the final configuration.

Discuss this sensor

Plan the
installation.

The details that help us select a practical configuration.

Provide tank dimensions, material, access and water use.
Choose quality monitoring, level monitoring or both.
Confirm the external level transmitter and its compatibility before finalizing the equipment schedule.

Lexaloop product specifications

Reviewed 22 October 2026. Specifications and compatibility are confirmed for the final configuration.
